Adstation™ 56122

3.5V Wall Coax Plus Ophthalmoscope

Ordering Information

SKU:
56122L
UPC:
634782081669
Product Reference:
$913.48

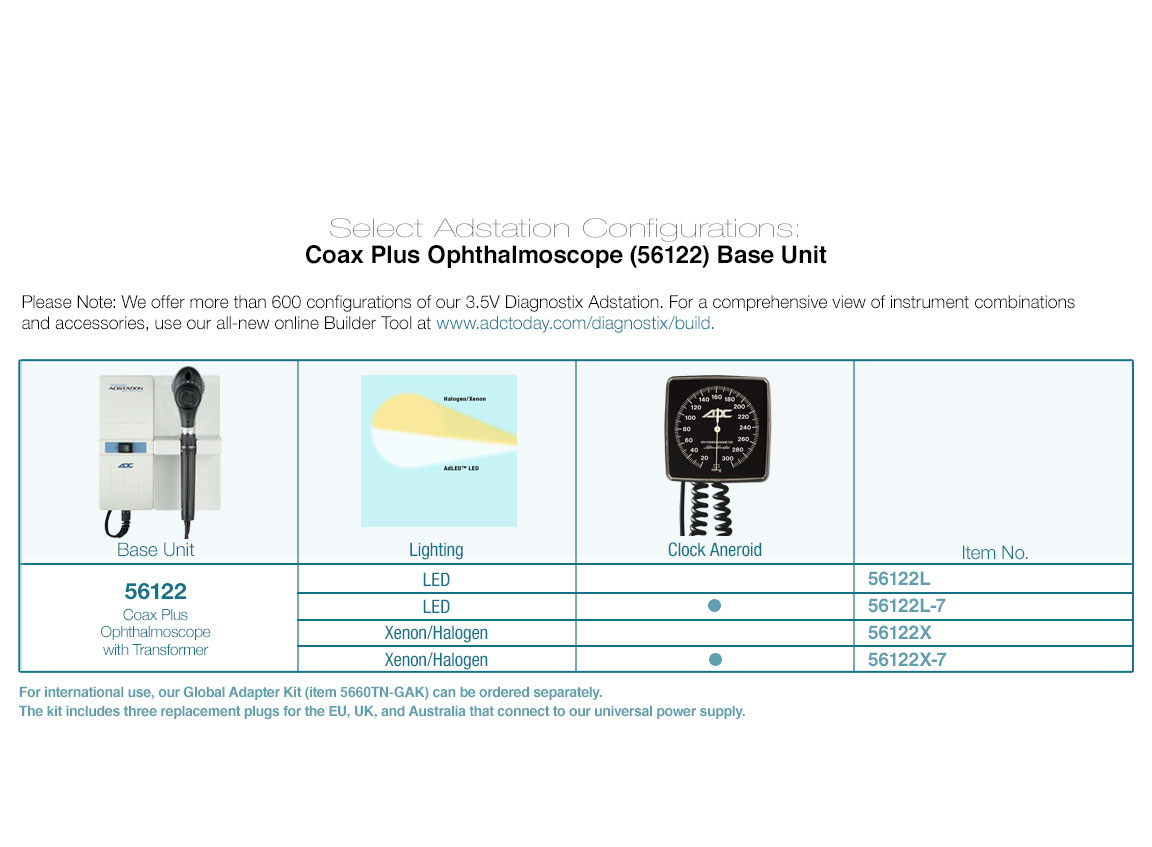

Show Model Options Chart Register this product
Product Description

Complete instrument includes 3.5V Coax Ophthalmoscope head and wall transformer power supply.

Coax Plus Ophthalmoscope Head (p/n 5442) features:

  • High-performance aspherical condenser lens reduces corneal reflection
  • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation)
  • Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses
  • Dust proof
  • Magnified, illuminated aperture viewing window
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
  • Anti-theft locking feature is standard
  • Choose from halogen/xenon or high-performance AdLED illumination
  • Five-year warranty on instrument head, lifetime warranty on AdLED lamp
  • 89 viewing lenses from -44 to +45 in single step
  • 28 aperture/filter combinations for improved diagnostic capability
  • Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses
  • The addition of a Karo (grid) aperture that allows for easier transfer of observations to standard Karo (graph) paper

6 apertures include:

  • Slit – used to help determine levels of tumors and lesions
  • Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions
  • Large – standard aperture for a dilated pupil and general examination of the eye
  • Small – provides excellent view of fundus through an undilated pupil
  • Micro spot – allows quick entry into small, undilated pupils
  • Half moon – provides a combination of depth perception and field of view

3 filters (plus neutral) include:

  • Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
  • Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
  • Polarizing – virtually eliminates corneal reflection

Wall transformer power supply features:

  • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced
  • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control
  • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
  • Base unit contains power switch and one handle
  • Up to three single-handle extension units can be added
  • Easy to install with included bracket or may be mounted to our wallboard systems
  • Universal AC power supply with U.S. plug
  • UL approved
  • Five-year warranty on wall transformer

For international use, our Global Adapter Kit (item 5660TN-GAK) can be ordered separately. The kit includes three replacement plugs for the EU, UK, and Australia that connect to our universal power supply.

Specifications
Battery Handle: NA
Power Supply: 5660T
Extension Module: NA
Otoscope Head: NA
Ophthalmoscope Head: 5440L
Reusable Ear Specula: NA
Reusable Ear Specula: NA
Reusable Ear Specula: NA
Lamp for Otoscope: NA
Lamp for Ophthalmoscope: 5412-4L
Storage Case: NA
Disp. Specula 2.75mm: NA
Disp. Specula 4.25mm: NA
Insufflator Bulb: NA
Insufflator Fitting: NA
Global Adapter Kit: 5660TN-GAK



Support
Literature Name Download
English Adstation Extension Module - Assembly Instructions Download
English Adstation Modular Diagnostic Station - Instructions for Use Download
Español Estación de diagnóstico modular Adstation - Instrucciones de uso Download
Français Station de diagnostic modulaire Adstation - Instructions d'utilisation Download
Deutsch Adstation Modular Diagnostic Station - Gebrauchsanweisung Download
Italiano Stazione di diagnostica modulare Adstation - Istruzioni per l'uso Download
Features at a glance:
  • AC Power Supply

    Universal AC power supply with U.S. plug. For international use, our Global Adapter Kit (item 5660TN-GAK) can be ordered separately

  • UL

    UL Approved

  • Latex Content

    This products is not made with Natural Rubber Latex

  • Multiple Warranties

    Warranty extends to the original retail purchaser, commences with date of delivery.  Adstation transformer warranted for 5 years.  Instruments heads and handles warranted for 2 years.  ADled lamps warranted for Life.
