Adstation™ 5612

3.5V Wall Coax Ophthalmoscope

Ordering Information

SKU:
5612L
UPC:
634782082079
Product Reference:
$832.48

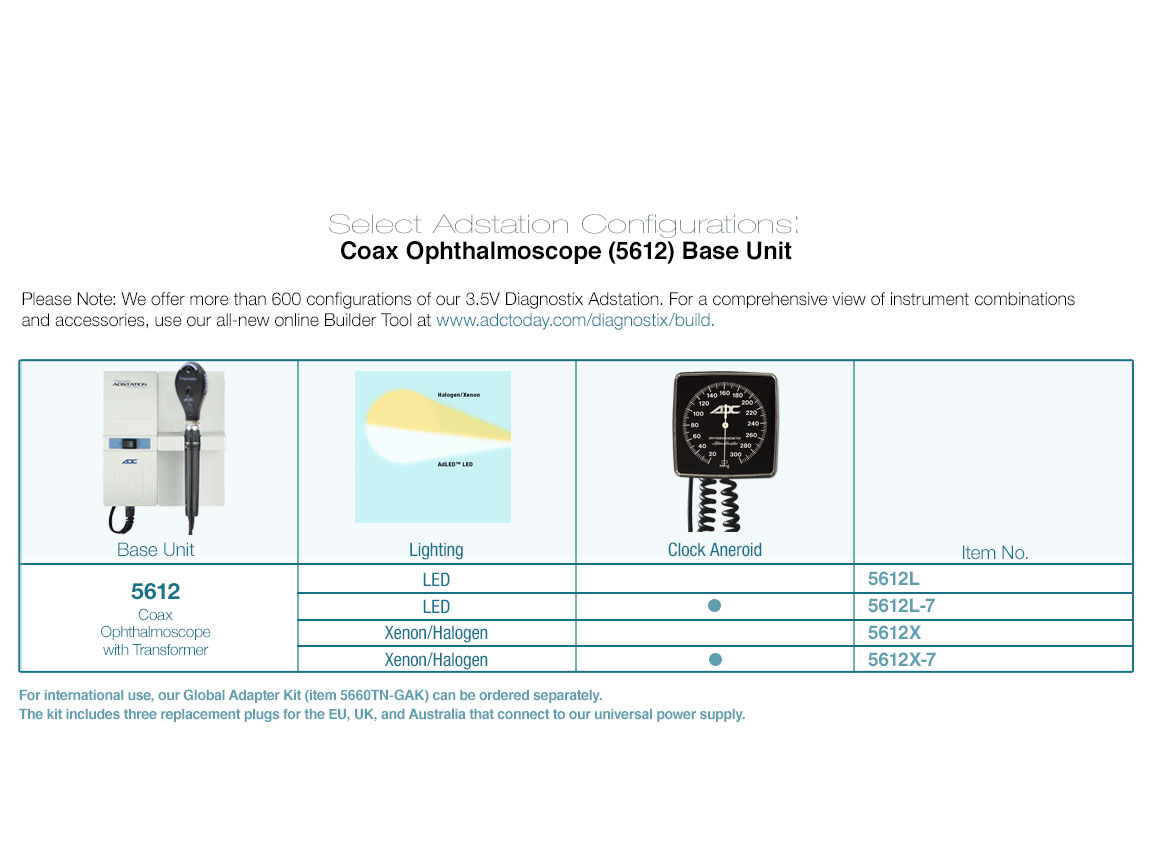

Show Model Options Chart Register this product
Product Description

Complete instrument includes 3.5V Coax Ophthalmoscope head and wall transformer power supply.

Coax Ophthalmoscope Head (p/n 5440) features:

  • High-performance aspherical condenser lens reduces corneal reflection
  • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation)
  • Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions
  • Synthetic rubber brow rest facilitates use with practitioner eyeglasses
  • Dust proof
  • Magnified, illuminated aperture viewing window
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
  • Anti-theft locking feature is standard
  • Choose from halogen/xenon or high-performance AdLED illumination
  • Five-year warranty on instrument head, lifetime warranty on AdLED lamp
  • 29 viewing lenses from -35 to + 40 (PLUS 1-10, 12, 15, 20, 40; Minus 1-10, 15, 20, 25, 30, 35)
  • 24 aperture/filter combinations for improved versatility

6 apertures include:

  • Slit – used to help determine levels of tumors and lesions
  • Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions
  • Large – standard aperture for a dilated pupil and general examination of the eye
  • Small – provides excellent view of fundus through an undilated pupil
  • Micro spot – allows quick entry into small, undilated pupils
  • Half moon – provides a combination of depth perception and field of view

3 filters (plus neutral) include:

  • Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
  • Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
  • Polarizing – virtually eliminates corneal reflection

Wall transformer power supply features:

  • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced
  • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip
  • Adtronic electronic rheostatic light intensity control provides infinite continuous control
  • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
  • Base unit contains power switch and one handle
  • Up to three single-handle extension units can be added
  • Easy to install with included bracket or may be mounted to our wallboard systems
  • Universal AC power supply with U.S. plug
  • UL approved
  • Five-year warranty on wall transformer

For international use, our Global Adapter Kit (item 5660TN-GAK) can be ordered separately. The kit includes three replacement plugs for the EU, UK, and Australia that connect to our universal power supply.

Support
Literature Name Download
English Adstation Extension Module - Assembly Instructions Download
English Adstation Modular Diagnostic Station - Instructions for Use Download
English Adstation Wall Drill Plan Download
English Diagnostix 3.5v Diagnostic Instruments - Instructions for Use Download
English Diagnostic Instruments - Literature Download
Español Diagnostix 3.5v Instrumentos de Diagnóstico - Instrucciones de uso Download
Español Estación de diagnóstico modular Adstation - Instrucciones de uso Download
Français Diagnostix 3.5v Instruments de Diagnostic - Mode d'emploi Download
Français Station de diagnostic modulaire Adstation - Instructions d'utilisation Download
Deutsch Adstation Modular Diagnostic Station - Gebrauchsanweisung Download
Deutsch Diagnostix 3.5V Diagnostic Instruments - Gebrauchsanweisung Download
Italiano Diagnostix 3.5V strumenti diagnostici - Istruzioni per l'uso Download
Italiano Stazione di diagnostica modulare Adstation - Istruzioni per l'uso Download
Diagnostix Instrumentos de Otorrinolaringologia Download
Replacement Parts
Battery Handle: NA
Power Supply: 5660T
Extension Module: NA
Otoscope Head: NA
Ophthalmoscope Head: 5440L
Reusable Ear Specula: NA
Reusable Ear Specula: NA
Reusable Ear Specula: NA
Lamp for Otoscope: NA
Lamp for Ophthalmoscope: 5412-4L
Storage Case: NA
Disp. Specula 2.75mm: NA
Disp. Specula 4.25mm: NA
Insufflator Bulb: NA
Insufflator Fitting: NA
Global Adapter Kit: 5660TN-GAK



Features at a glance:
  • AC Power Supply

    Universal AC power supply with U.S. plug. For international use, our Global Adapter Kit (item 5660TN-GAK) can be ordered separately

  • UL

    UL Approved

  • Latex Content

    This products is not made with Natural Rubber Latex

  • Multiple Warranties

    Warranty extends to the original retail purchaser, commences with date of delivery.  Adstation transformer warranted for 5 years.  Instruments heads and handles warranted for 2 years.  ADled lamps warranted for Life.
